What is Traveling Wave Tube (TWT) : Advantages and Disadvantages

A Traveling Wave Tube (TWT) is a vacuum electronic amplifier that amplifies microwave and radio frequency signals by transferring energy from an electron beam to a traveling electromagnetic wave. Its advantages include high output power, wide bandwidth, and excellent gain, whereas its disadvantages include larger size, higher operating voltage, and increased manufacturing cost.

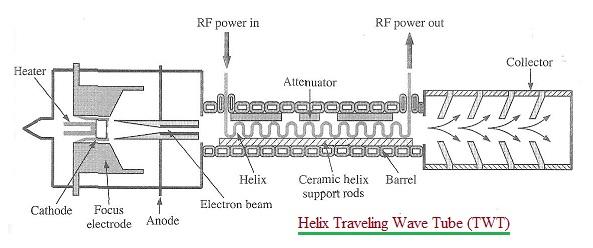

Traveling Wave Tube (TWT) : Structure and types

The Traveling Wave Tube (TWT) is a favored microwave amplifier, commonly used in the 300 MHz to 50 GHz frequency range. It’s known for delivering significant gain, often up to 40dB with a single device.

There are two main types of TWTs:

• Helix TWTs: Suited for power levels up to 2.5 KW.
• Coupled Cavity TWTs: Designed for higher power applications, up to 15 KW.

The operational principle of a traveling wave tube shares similarities with that of a klystron.

Benefits or Advantages of TWTs

1. Wideband Operation: TWTs are wideband devices thanks to their use of non-resonant wave circuits, enabling operation across a broad frequency spectrum (300 MHz to 50 GHz).
2. Low Noise: They are known for their low-noise characteristics, making them suitable for sensitive applications.
3. High Gain: TWTs provide considerable gain, with single devices capable of achieving gain levels up to 40 dB.
4. Moderate Power Handling: They can deliver moderate peak power and average power levels.
5. High Efficiency (Coupled Cavity TWTs): Coupled cavity TWTs can achieve efficiencies up to 60% and gain up to 70 dB. They can also provide peak power outputs ranging from tens of KW to thousands of KW, and average power up to tens of KW.

Drawbacks or Disadvantages of TWTs

1. Lower Efficiency (Generally): TWTs typically operate at lower efficiencies compared to some other amplifier technologies.
2. Coupling Effects (Coupled Cavity TWTs): In coupled cavity TWTs, coupling effects can occur between the cavities, potentially affecting performance.
3. Peak Power Limitation (Helix TWTs): Helix TWTs face limitations on high peak power due to the thickness of the helix wire. This limitation can be overcome by using a coupled cavity TWT, which utilizes a series of coupled cavities arranged axially along the beam instead of a helix.

Summary

Traveling Wave Tubes continue to play an important role in satellite communication, radar systems, electronic warfare, and deep space communication by providing high power, broadband RF amplification. Their amplification advantages support demanding microwave applications, although size, power requirements, cooling needs, and production costs influence their use compared with modern solid-state amplifier technologies.
