Advantages of Shared Carrier | Disadvantages of Shared Carrier

This page covers advantages and disadvantages of Shared Carrier. It mentions Shared Carrier advantages and Shared Carrier disadvantages.

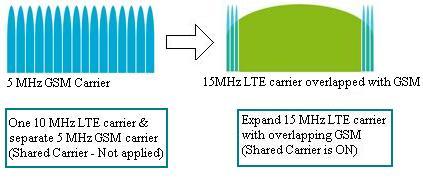

Introduction: As shown in the figure shared carrier concept helps in sharing the same bandwidth of frequency spectrum among more than one RATs. Figure depicts sharing of spectrum by GSM and LTE RATs (Radio Access Technologies).

The concept is also utilized for simulatenous use of LTE terminal in VoLTE and data modes.

shared carrier

Figure-1 Shared Carrier

Advantages of Shared Carrier

Following are the advantages of Shared Carrier:
➨Due to sharing of spectrum system becomes more bandwidth efficient. Hence resources are allocated more efficiently.
➨It does not require any additional equipments as same radio hardware can be used by different RATs with the control of RF and baseband parts appropriately.
➨The use makes fast call establishment. This is due to less signaling overhead because of no forced re-direction between the carriers.
➨In LTE, it uses same set of SIB configuration for both the carriers.
➨This concept is less susceptible to human errors during the eNB ( i.e. base station ) provisioning.

Disadvantages of Shared Carrier

Following are the disadvantages of Shared Carrier:
➨It will have more complex configuration of measurement report to ensure accurate triggering in inter-frequency handover scenario.
➨It requires complex VoLTE QoS requirements at network side and at UE side to meet resource requirements for VoLTE users.
