What is Log Periodic Antenna?

Introduction:

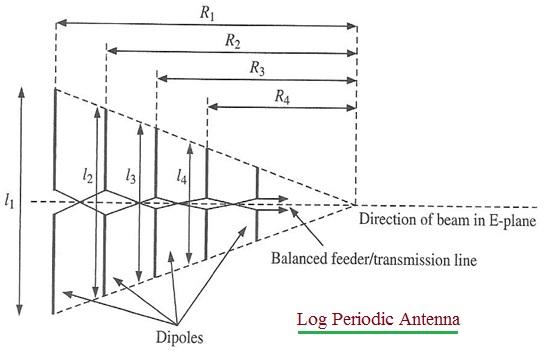

The Log periodic antenna consists of array of dipoles having different lengths and spacings. The array is feed from two-wire line which is transposed between each of the dipole pairs. The array is fed from narrower end maximum radiation is achieved as shown in the figure-1.

Log Periodic Antenna structure

The following is the mathematical equation which can be used in design of Log periodic antenna.
➨ R1/R2 = R2/R3 = R3/R4 = τ = l1/l2 = l2/l3 = l3/l4
Where,
τ is design ratio and it is less than 1.
Two lines drawn to join the opposite ends of dipoles are straight and convergent forming an angle α. Typical values of τ and α are 0.7 and 30 degrees respectively.
Refer Antenna tutorial >> and Log Periodic Antenna basics >>.

LPDA (Log Periodic Dipole Array) antenna is of two types.
• LPDA Straight type
• LPDA Vee type

Benefits or advantages of Log Periodic Antenna

Following are the benefits or advantages of Log Periodic Antenna:
➨The radiation resistance and pattern of the antenna do not depend on frequency.
➨10:1 Bandwidth can be achievable with simple design. The wide bandwidth is great advantage of this antenna compare to YAGI and other antenna types.
➨Low to moderate gains can be obtained.
➨It offers uni-directional and bi-directional radiation patterns. It is highly directional antenna.
➨It can be used for HF/VHF/UHF communication as well as for TV reception.
➨It is available in wide variety of shapes.
➨It is used for two way communication requiring multiple frequencies.

Drawbacks or disadvantages of Log Periodic Antenna

Following are the disadvantages of Log Periodic Antenna:
➨Log periodic antenna requires higher number of elements for lower frequencies in HF/VHF bands.
➨The antenna offers lower gain compare to YAGI antenna having same size.
➨They are not used for omni-directional applications.
➨They have low polarization ratio.
