8086 vs 80286 vs 80386 vs 80486-Difference between 8086, 80286, 80386 and 80486


This 8085 microprocessor tutorial covers following sub-topics:
8085 architecture   8085 programming   instructions


This page on 8086 vs 80286 vs 80386 vs 80486 describes difference between 8086, 80286, 80386 and 80486. 8086 is the microprocessor released after 8085 microprocessor from Intel. Refer 8085 vs 8086➤ for comparison between the two.

8086 Microprocessor

Following are the features of 8086 microprocessor:
• Data Bus Width: 16
• Addressed Memory Size of: 1M

80286 Microprocessor

Following are the features of 80286 microprocessor:
• Data bus width: 16
• Addressed Memory size of : 16M
• Clock speed is higher and hence some instructions are executed in as little as 250ns.
• As shown in the figure, 80286 does not have multiplexed address/data bus lines.

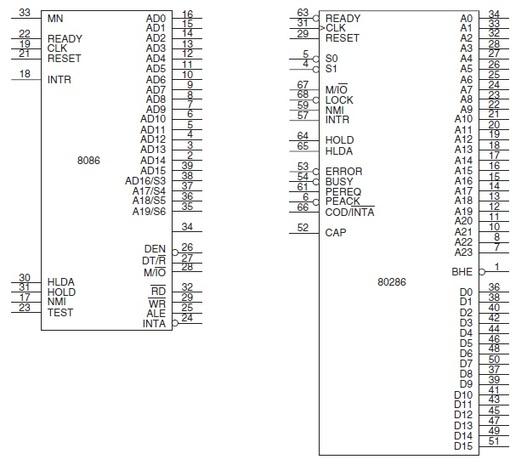

8086 vs 80286 pin diagram

Figure-1 depicts pin diagram of 8086 and 80286.

80386 Microprocessor

Following are the features of 80386 microprocessor:
•  32-bit data bus and 32-bit memory address
•  It addresses up to 4G bytes of memory.
• 80386SX: address 16M bytes of memory.
• 80386SL: address 32M bytes of memory.
• 80386SLC: address 32M bytes of memory.It contain internal cache memory which allowed it to process data at higher rates

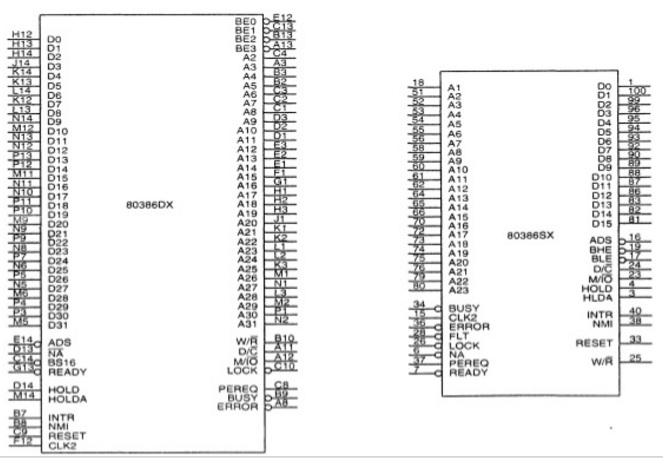

80386 pin diagram

Figure-2 depicts pin diagrams of 80386DX and 80386SX.

80486 Microprocessor

Following are the features of 80486 microprocessor:
• Data Bus Width: 32 bit
• Address bus : 32 bit
• Memory Size: 4G +16K cache
• The 80486 architecture has been ungraded such that half of its instructions are executed in 1 clock cycle instead of two clock cycles.
• It has 80386 like microprocessor and 80387 like numeric coprocessor.

Following table compares 80286 vs 80386 vs 80486 and mentions difference between them.


Specifications 80286 80386 80486
CPU Speed 6 to 25 MHz 12 to 40 MHz 16 to 100 MHz
Cores 1 1 1
RAM 16MB 4GB 4GB
Functional Units 4 6 9
Pipeline stages 3 3 5
Cache off chip 0 YES (Support) YES (Support)
Cache on chip 0 0 8 KB
Transistors 134,000 275,000 >1000000
