Mobile Terminated-MT call flow in GSM


This tutorial section on GSM basics covers following sub topics:
Main Page  Frame  Burst types  PHY  gsm stack  speech processing  ARFCN  Channel types  GSM Security  Network Entry  Mobile basics


Introduction

This article covers MO MT call flow in GSM. This page describes mobile terminated call flow between Mobile(UE) and network. It covers messages exchanged between Layer 3 entities(RR,MM,CC) at both side. It include channels(PCH,RACH,AGCH,SDCCH,FACCH,TCH) used at layer 1 to carry these messages over the air. This article assumes that initial frequency and time synchronization is done between UE and Network as described in GSM tutorial in tutorial section.

mobile terminated,MT call flow in GSM

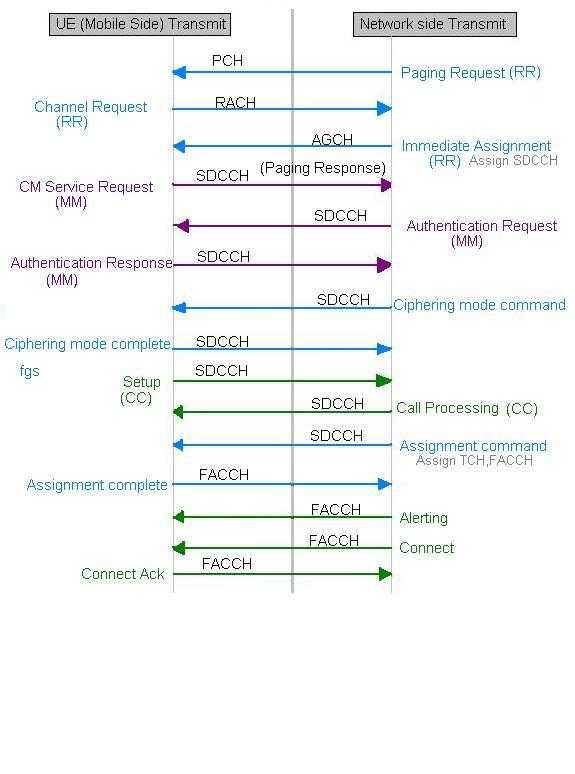

As described in the figure, PCH will be sent by network to alert mobile with ring tone if someone dials. This is called mobile terminated call. After PCH is received, mobile will transmit RACH and obtain SDCCH and other resources for further process.

As described in GSM protocol stack, messages flow between both mobile and network at various layers(layer 3,layer 2,layer 1(physical layer). The message flow is self explanatory to establish the circuit switched mobile terminated(MT) call in GSM.

Mobile Terminated Call (MT call) Release

mobile terminated call release

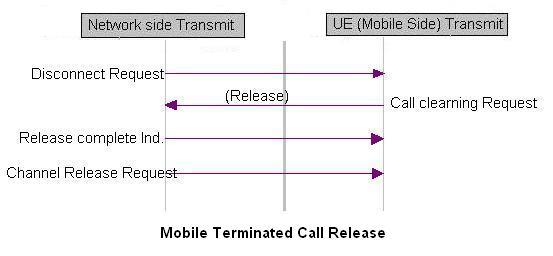

The figure above mentions messages exchanged between mobile and network for call release.

MO Call flow in gsm

Refer Mobile Originated Call flow.

PS MO MT call flow in gsm

Refer following links for PS call flow in gsm:
GSM downlink PS data call flow
GSM uplink PS data call flow
Circuit Switching vs Packet Switching
