Lens Antenna basics and Types-Dielectric,metal plate lens Antenna

This page covers basics of lens antenna.It mentions functions and operation of lens antenna. It describes lens antenna types viz. dielectric lens antenna and metal plate lens antenna.

Definition: The lens antenna is 3-dimensional electro-magnetic device which has refractive index other than unity. It consists of electro-magnetic lens along with feed. This antenna is similar to glass lens used in optical domain.

Following are the functions of a lens antenna:
• It generates plane wavefront from spherical.
• It forms incoming wavefront at its focus.
• It generates directional characteristics.
• It is used to collimate electromagnetic rays.
• It controls aperture illumination.

Working Operation of lens antenna

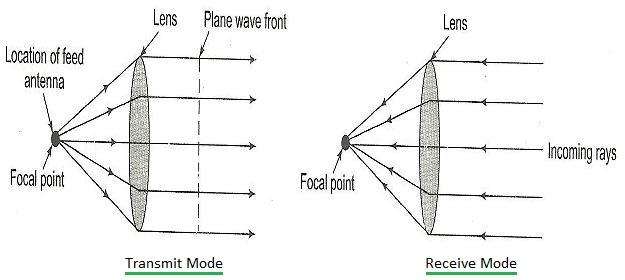

lens antenna working

The figure-1 depicts working operation of lens antenna. As shown, feed antenna is used at the focal point of lens. The two different modes of lens antenna are shown viz. transmit mode and receive mode.

As shown in the transmit mode, diverging rays are collimated which forms plane wavefront after they are incident on the lens and have come out of it. Collimation occurs due to refraction mechanism. It occurs in the lens with refractive index of less than one.

As shown in the receive mode, parallel rays converge at focal point after they have passed through lens due to refraction mechanism.

Lens antenna is used along with point source, but practically horn antennas are used at focal point.

Types of lens antenna

There are two types of lens antenna.
➨Dielectric Lens Antenna
➨Metal Plate Lens Antenna

Dielectric lens antenna

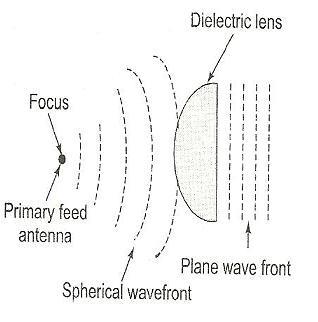

dielectric lens antenna

The figure-2 depicts dielectric lens antenna. As shown spherical wavefront produced by primary feed antenna is converted into plane wavefront by dielectric lens. It is also known as delay lens antenna due to the fact that outgoing EM rays are collimated & delayed by lens material.

Following are the features of dielectric lens antenna:
• It is useful at higher frequencies, it becomes heavy and bulky at frequencies less than 3 GHz.
• It is made of polystyrene or lucite & polyethylene.

The above mentioned limitation of frequency is avoided by stepped or zoned type of dielectric lens. The width of stepped lens is expressed as follows.
Width (w) = λ/(n-1) ,
Where, n = refractive index of lens

The bandwidth of zoned lens antenna is expressed as follows.
Bandwidth = (50*n) /(1+K*n)
Where K = Number of zones and n = refractive index

Metal plate lens antenna

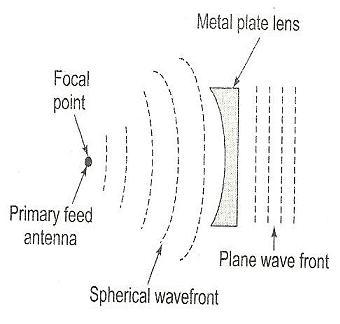

metal plate lens antenna

The figure-3 depicts metal plate lens antenna. In this type of lens antenna, spherical wavefront is converted into plane wavefront but here outgoing wavefront is speeded up by material of lens. The same operation is shown in the figure.

Advantages and Disadvantages

The main advantage of lens antenna is that feed antennas in the design do not obstruct the aperture.

The disadvantage of lens antennas is that they are costlier for same gain/bandwidth in comparison to reflector antenna.
