Advantages of Z-wave | Disadvantages of Z-wave
This page covers advantages and disadvantages of Z-wave. It mentions Z-wave advantages and Z-wave disadvantages.
Z-wave Introduction:
• Low power and low data rate wireless system developed by Sigma Designs, Inc.
• It operates in ISM bands 868 and 908 MHz.
• Supports 9.6 Kbps, 40 Kbps and 100 Kbps data rates.
• Modulation: FSK and GFSK
• Covers distance of 30 meters (indoor) to 100 meters (outdoor).

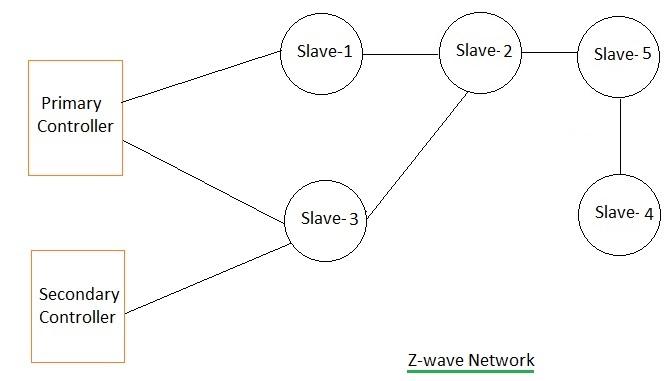

The z-wave network consists of controllers (1 Primary, Multiple secondary) and slave devices. This wireless technology is used for various applications such as home automation, wireless security sensors and emergency alarms. Due to its low power consumption, it is widely used in IoT (Internet of Things) based devices.
Advantages of Z-wave
Following are the advantages of Z-wave:
➨The zwave network installation is simple and easy. It is also easy to add/remove
z-wave devices in the once installed system.
➨The z-wave devices consume less power and hence
saves great amount of cost in the battery use.
➨The home appliances are controlled remotely and this will add to
great amount of comfort to the users.
➨z-wave devices are interoperable with other wireless devices in the IoT space.
➨The z-wave technology based devices are cheaper and hence technology is affordable
to obtain great features/facilities once installed.
➨It uses AES-128 type of encryption to provide secured wireless network for the users.
Disadvantages of Z-wave
Following are the disadvantages of Z-wave:
➨The coverage is limited and hence requires more z-wave devices to
cover larger region. This increases the overall cost if more z-wave repeaters or routers are employed.
➨The technology requires knowledge to keep it secure from
unauthorized people. This is due to the fact that z-wave works on RF (Radio Frequency) and it is
wireless in nature which can be accessed from anywhere.
➨It supports only tree topology structure.
➨It supports limited number of nodes i.e. 232 which is less
than 65000 nodes as supported by zigbee standard.
➨It supports less data communication speed upto 100 kbps which is
less compare to zigbee. Moreover due to less speed, z-wave can only be used for
small data size based communication need such as monitoring and control.
