D Flipflop without reset

This page covers D Flipflop without reset with symbol,verilog code,test bench,simulation and RTL Schematic.

Symbol

D Flipflop without reset

Verilog code

module d_flip_flop(data_in,data_out,clock);
input data_in;
input clock;
output data_out;
always@(posedge clock)
begin
data_out<=data_in;
end
endmodule

Test Bench

module Tb_d_flip_flop();
reg data_in;
reg clock;
wire data_out;

d_flip_flop UUT(.data_in(data_in),
.data_out(data_out),
.clock(clock));

initial begin
// Initiliase Input Stimulus
data_in = 0;
clock = 0;
end

always #100 clock=~clock;

//Stimulus
initial
begin
#100 data_in = 1'b0;
#100 data_in = 1'b1;
#600 data_in = 1'b0;
#500 data_in = 1'b1;
#200 data_in = 1'b0;
#100 $stop;
end

endmodule

Simulation

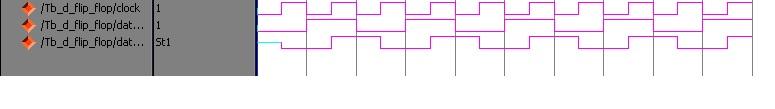

D flipflop without reset simulation

RTL Schematic

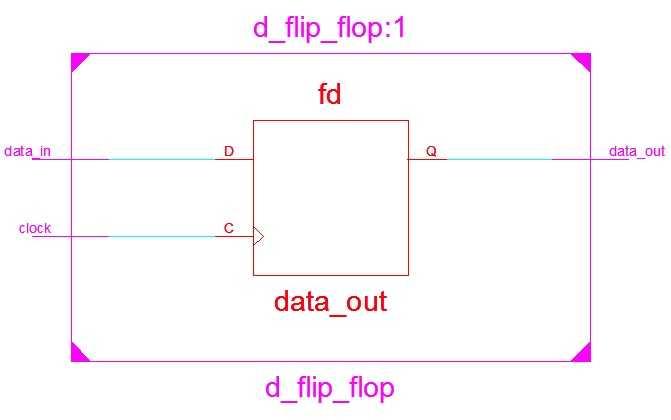

D flipflop without reset RTL schematic
