Interleaver and deinterleaver MATLAB source code

This section of MATLAB source code covers interleaver matlab code. Deinterleaver matlab code is provided to validate the interleaver.

Setting up input parameters

%SETTING UP parameters required for Interleaver module to function
clc;
clear all;
Ndatasc=192; % Number of data subcarriers in the IFFT symbol
mod_type=input('Enter the modulation type[1 for BPSK,2 for QPSK,4 for 16QAM,6 for 64QAM]: ');
ncbps = Ndatasc*mod_type;%Number of coded bits per symbol, based on number of data carriers in OFDM symbol
ncpc=mod_type; %Number of coded bits per carrier
x = randint(ncbps,1,[1,0]); % generating binary data ones and zeros
interleaver_input=x'; % Interleaver binary input

Interleaver MATLAB Code

% Interleaver PART
s=ceil(ncpc/2);
k=0:ncbps-1;
%First permutation of interleaver
m=(ncbps/12)*mod(k,12)+floor(k/12);
%Second permutation of interleaver
n=s*floor(m/s)+mod(m+ncbps-floor(12*m/ncbps),s);
interleaved_data_out(n+1)=interleaver_input(k+1) % OUTPUT of interleaver

Deinterleaver MATLAB Code

% Deinterleaver PART
j=0:ncbps-1;
s=ceil(ncpc/2);
%First de-permutation of de-interleaver
d=s*floor(j/s)+mod(j+floor(12*j/ncbps),s);
%second de-permutation of de-interleaver
e=12*d-(ncbps-1)*floor(12*d/ncbps);
deinterleaver_data_out(e+1)=interleaved_data_out(j+1)

OUTPUT Plots in MATLAB

% Plotting data
subplot(4,1,1),plot(1:length(interleaver_input),interleaver_input);
title('INTERLEAVER INPUT');xlabel('binary input index');ylabel('binary data');
subplot(4,1,2),plot(1:length(interleaved_data_out),interleaved_data_out);
title('INTERLEAVER OUTPUT');xlabel('binary input index');ylabel('binary data');
subplot(4,1,3),plot(1:length(deinterleaver_data_out),deinterleaver_data_out);
title('DE-INTERLEAVER OUTPUT');xlabel('binary input index');ylabel('binary data');
subplot(4,1,4),plot(1:length(deinterleaver_data_out),(interleaver_input-deinterleaver_data_out));
title('Difference between Interleaver-IN and Deinterleaver-OUT/');

input to interleaver

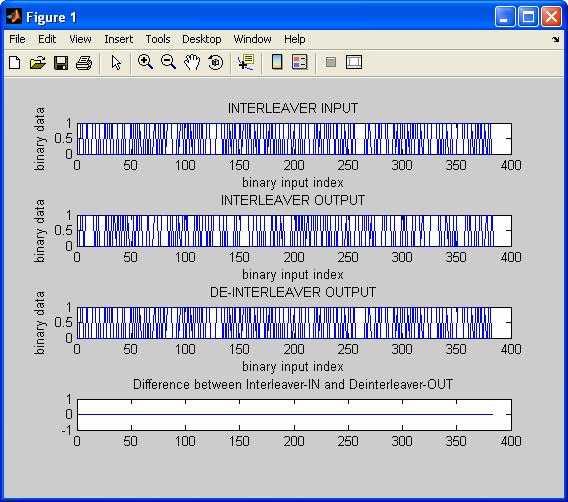

interleaver deinterleaver matlab output
