Zener diode calculator | converters and calculators

This page of converters and calculators section covers zener diode calculator. This zener diode calculator calculates series resistance as output. It takes source voltage (min,max), zener diode voltage and load current (in mA) as input.

Source voltage, min(input1) :

Source voltage, max(input2) :

Zener voltage (input3) :

Load current,mA (input4) :


Series resistance in Ohms (Output1):

Example of zener diode calculator:
INPUTS : Vsmin = 20 V, Vsmax = 24 V, Vz = 12 V, IL (current through series resistor) = 500 mA
OUTPUTS: Zener series resistance = 16 Ohm.


zener diode calculator Equation/Formula

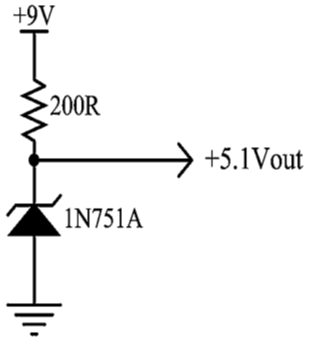

zener diode voltage regulator

Following equation or formula is used for zener diode calculator.

zener diode calculator equation,formula

Refer Application Note on use of zener diode as voltage regulator..
