RF Cable Loss calculator | Formula for RF Cable Loss

This page covers RF Cable Loss calculator. The formula used in RF cable Loss calculator is also mentioned.

cable operating Frequency MHz (input1) :

K1 (input2) :

K2 (input3) :

Connector Loss Factor (input4) :

Cable Length L in feet (input5) :

RF Cable Loss in dB/100 Ft (Output1):

RF Cable Loss in dB with length L (Output2):

*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

EXAMPLE of RF Cable Loss Calculator:
INPUTS: Frequency = 2500 MHz, K1 = 0.11694, K2 = 0.00036, CLF = 0.12, L = 150ft
OUTPUTS: RF Cable Loss = 6.93 dB/100ft, 10.4 dB/150 ft

Formula/Equation used in RF Cable Loss calculator

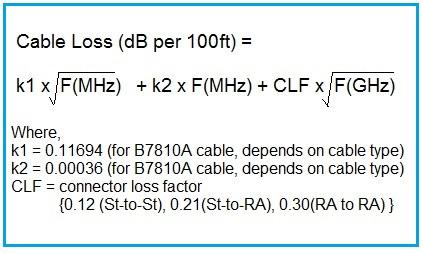

Following formula/equation is used in this RF cable loss calculator.

rf cable loss formula

The cable Loss consists of conductor wire loss, insulation loss and connector loss. As mentioned in the equation, conductor loss (K1) relates to square root of frequency, insulation loss (K2) relates to frequency and connector loss relates to connectors used in the cable. Connectors can be either straight type or right angled type.
