Microstrip Mitred Bend Calculator | Formula,Equation

This page covers Microstrip Mitred Bend Calculator. It mentions formula or equations used in this Microstrip Mitred Bend Calculator.

INPUTS

Width of Microstrip line :

Height of substrate :

OUTPUTS

Dimention 'D' :

Dimention 'X' :

Dimention 'A' :


*Note: Enter values in INPUT boxes and Press CALCULATE button to check OUTPUTS.

EXAMPLE:
INPUTS: Width of line = 19.685 mils ; Height of Substrate = 25 mils
OUTPUTS: D =27.838 ; X= 20.726 ; A= 9.626
(1 mm =39.37 mils, so to convert mm to mils, multiply by 39.37 or use following mm to mils converter)

mm to mils converter

INPUT

millimeter:

OUTPUT

Mils:


EXAMPLE:
INPUT: mm = 0.5
OUTPUT: mils = 19.685

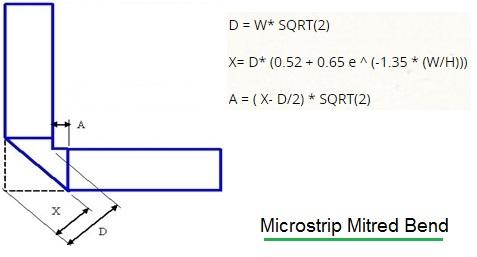

Microstrip Mitred Bend Formula or Equation

Following equation or formula is used for Microstrip Mitred Bend Calculator.

Microstrip Mitred Bend
