waveguide frequency bands-R band,D band,W band,Y band etc

This page mentions table with various waveguide frequency bands. The table covers R band, D band, S band, E band, G band, F band, C band, H band, X band, X-Ku band, Ku band, K band, Ka band, Q band, U band, V band, W band, Y band etc. waveguide frequency bands.

waveguide frequency bands

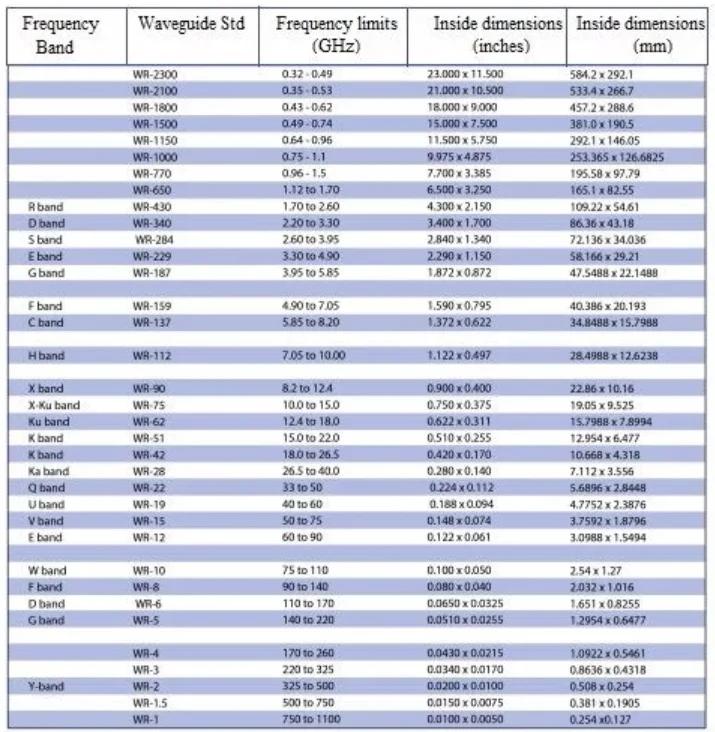

The table mentions waveguide standard, frequency limits (GHz), inside dimensions in both inches and mm against different waveguide frequency bands.

WAVEGUIDE RELATED LINKS

RF Switch basics and applications along with manufacturers of RF switch refer following link:
RF Switch

For types of waveguide viz. rectangular & circular, waveguide propagation modes, impedance matching of waveguide read following waveguide tutorial.
waveguide basics tutorial

Manufacturers of waveguide components such as waveguide to coaxial adapter, coupler, flanges, gasket, tees, termination, shorts, isolator, circulator, horn antenna, attenuator, feed-thrus, bends, loads, twists, straights, pressure windows, transformers, sliding short circuits, fixed short circuits, sliding mismatches etc. visit following link.
Waveguide components manufacturer

Rectangular waveguide dimensions as per USA standard including frequency, broad dimension and narrow dimensions, visit following link.
Waveguide dimensions table
