NOMA vs OMA | Difference between NOMA and OMA | 5G

This page compares NOMA vs OMA and mentions difference between NOMA and OMA used in 5G Wireless technology. NOMA stands for Non-Orthogonal Multiple Access and OMA stands for conventional Orthogonal Multiple Access.

Introduction:
Both NOMA and OMA are multiple access techniques which utilize power domain/code domain and time/frequency domain respectively. The TDMA and OFDMA are examples of OMA techniques.

NOMA | Non-Orthogonal Multiple Access

The NOMA is a multiple access technique employed in 5G cellular wireless network. The main function of NOMA is to serve multiple UEs (User Equipments) using single 5G-NB (Node B or Base Station). It serves multiple users on same time/frequency resources.

There are two main techniques employed in NOMA for multiple access.
• Power domain: Here NOMA achieves multiplexing based on different power levels.
• Code domain: Here NOMA achieves multiplexing based on different codes.

NOMA, Non-Orthogonal Multiple Access

Transmit side: NOMA uses superposition coding at the transmitter end. The different power levels have been assigned to users. As shown in the figure-1, Base Station transmits superposed signals to User#1 and User#2. Here User#2 uses high gain and User#1 uses low gain as shown.

Receive side: NOMA uses SIC (Successive interference cancellation) technique to retrieve data of both the users. At receiver, User#2 (Strong User) substracts signal of user#1 through SIC and later decodes its own signal. User#1 (Weak User) treats signal of User#2 as noise and decodes its own signal directly.

OMA | Orthogonal Multiple Access

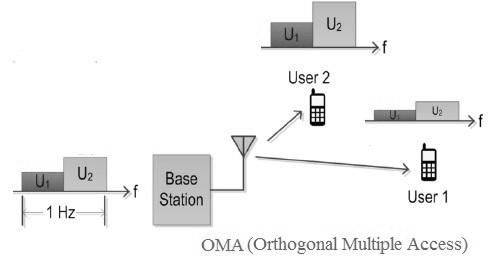

OMA, Orthogonal Multiple Access

• In OMA, frequency domain is shared among users. As shown U1 part of frequency spectrum is allocated to User#1 and U2 part is allocated to User#2.
• Refer advantages and disadvantages of NOMA over OMA >> technique.
• Example: TDMA, OFDMA
• Refer OFDM Vs OFDMA >> and SC-FDMA Vs OFDMA >>

Following table summarizes difference between NOMA and OMA.

Specifications NOMA OMA
Full Form Non-Orthogonal Multiple Access Orthogonal Multiple Access
Receiver complexity High Low
Energy consumption More Less
Number of users/cluster Lower Higher
Number of user pairs Less More
System throughput (Assumption: User fairness is guaranteed) Larger Smaller

Also refer difference between NOMA and OFDMA for more information.
